TMG Reality (EPOCH-90)

The Single Board Replacement for SYSTEM 32 SERIES Computers Mulit-Board CPU'S


    Replacement for 32/55
    Replacement for 32/75
    Replacement for 32/77
    Replaces WCS AND FPA




  100% Software Compatible
RTM PSW Mode, or MPX,
PSD Mode

  30% to 70% Performance
Increase

  7 to 1 Board Count Reduction

  Integral Hardware Floating Point Unit

  Optional On-Board WCS

  State-of-the Art Technology

  Lower Power and Cooling Requirements

  Higher MTBF and Lower MTTR

100% Software Compatible

Whether you are running RTM or MPX on your 32/Series TM system, your application software will operate without modification.

30% to 70% Performance Increase
Your application will realize a minimum of 30% increase in CPU/IPU performance. All floating operations will double in Performance.

7 to 1 Board Count Reduction
Using state-of-the-art technology, the single board TMG Reality (EPOCH-90) CPU replaces the 32/SeriesTM three-board CPU, two board FPU and two board WCS.



Integral Hardware Floating Point Unit
The TMG Reality (EPOCH-90) CPU comes with built-in hardware assist to ensure superior single and double precision floating point operations.

Optional On-Board WCS
Space for an optional 8K of WCS is provided on board. TMG can provide this enhancement as needed.

Lower Maintenance Costs
The 7 to 1 board and 27 interconnect cable reduction results in much higher MTBF figures and lower MTTR as well as lower power and cooling requirements.

.*TM Systems 32/Series 32/55, 32/75, 32/77 and SelBUS are trademarks of Encore Computer Corporation Ft. Lauderdale, Florida U.S.A.

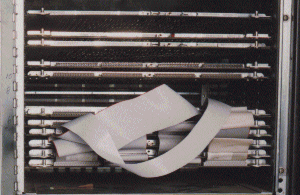

Standard Configuration
using 2005 CPU'S





Reduced board count
using EPOCH CPU





TMG Reality Configuration
EPOCH CPU
